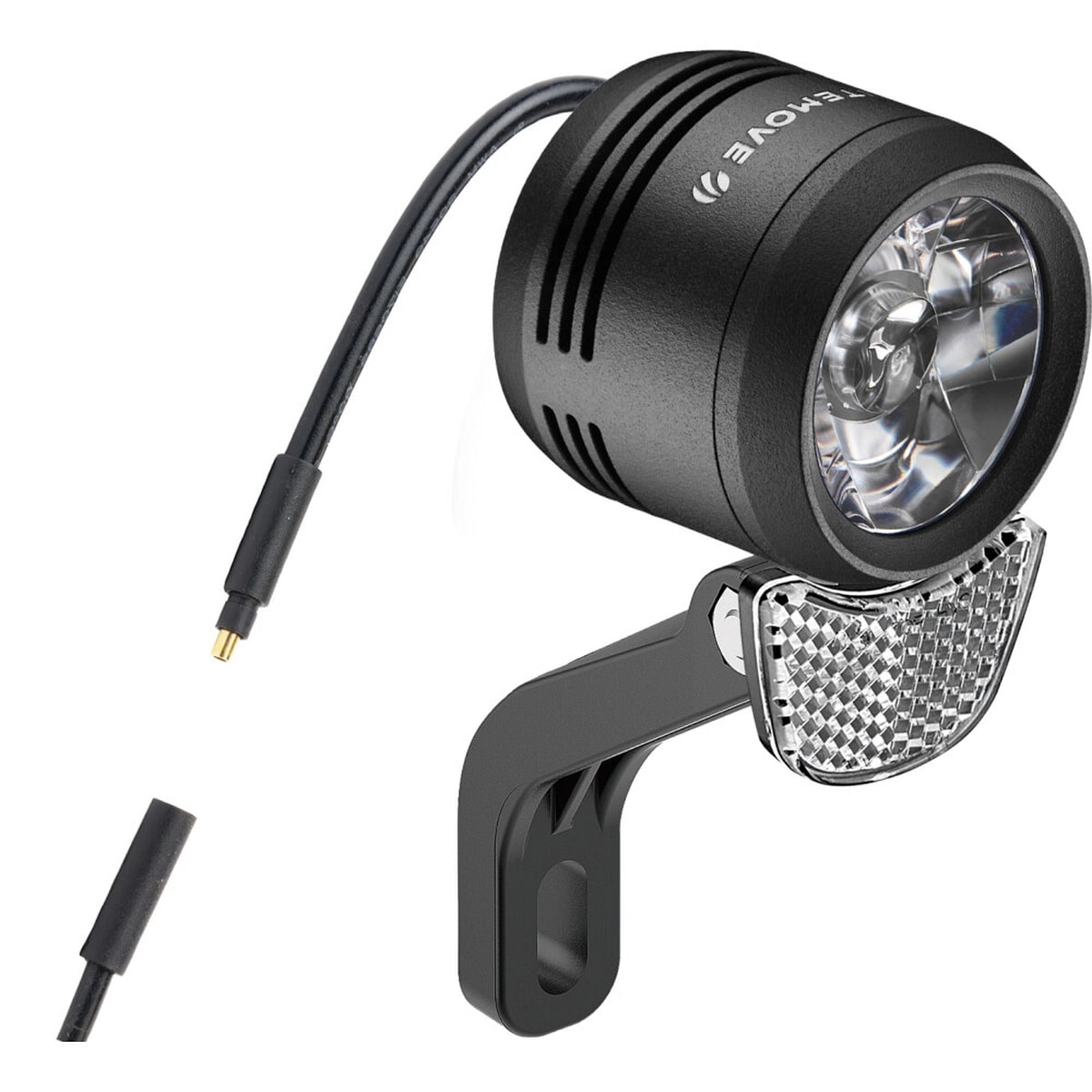

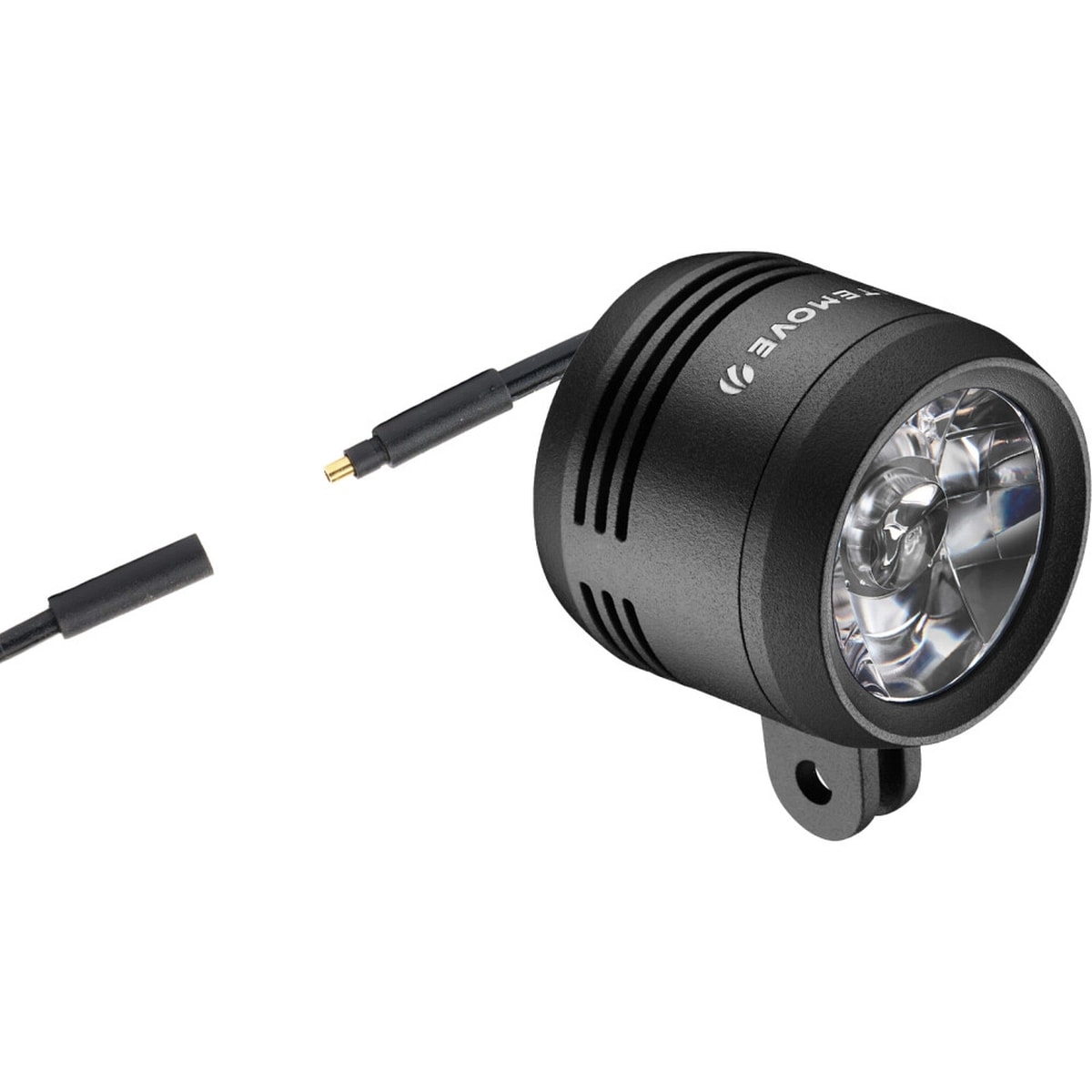

Litemove SC-160 CT1 E-bike Headlight incl. X-Connect Adapter

The Litemove SC-160 CT1 is a 160 lux bright e-bike front light that is connected via the CT1 plug or using the X-Connect adapter.

With a light output of 160 lux, the SC-160 also impresses on completely unlit paths and ensures reliable vision in the dark. However, it's not just brightness that counts: A light width of up to 12 metres in combination with homogeneous light distribution ensures that the path is evenly illuminated and you can keep an eye on the trail at all times.

Details:
• Compact and bright e-bike headlight for fork mounting
• Suitable for e-bikes with CT1 connection or X-Connect
• Up to 160 lux lighting power
• ATIR technology combines the advantages of LED lens and reflector
• Enables homogeneous light distribution and high efficiency
• Up to 12 m light width provides a good overview
• Aluminium construction with efficient heat dissipation enables constant luminosity and high durability
• Mount for fork attachment included
• Approved for all e-bikes limited to 25 km/h according to German road traffic regulations StVZO

Technical details:
• Material: aluminium, plastic
• Installation: handlebar mount (Ø 31.8 mm / 35 mm)
• Power supply: 12 V DC direct voltage (11 V - 16V )
• Power consumption: approx. 9 watts
• Lamp: LED
• Lighting power: up to 160 lux
• Light modes: 1 (low beam)
• Protection category: IP 56 (dust- and waterproof)
• Dimensions: approx. Ø 46 x 40.8 mm
• Cable length: approx. 150 mm (power connection)
• Weight: approx. 115 g

In the box:
• 1 LITEMOVE SC-160 CT1 e-bike headlight
• 1 LITEMOVE headlight fork mount
• 1 LITEMOVE CT1 to X-Connect adapter cable


Note:
ONLY suitable for e-bikes with CT1 or X-Connect connection.

Note:
The front light is compatible with a direct current power source (DC) of 11 to 16 volts. Some e-bikes can provide this, but NOT all do!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!
