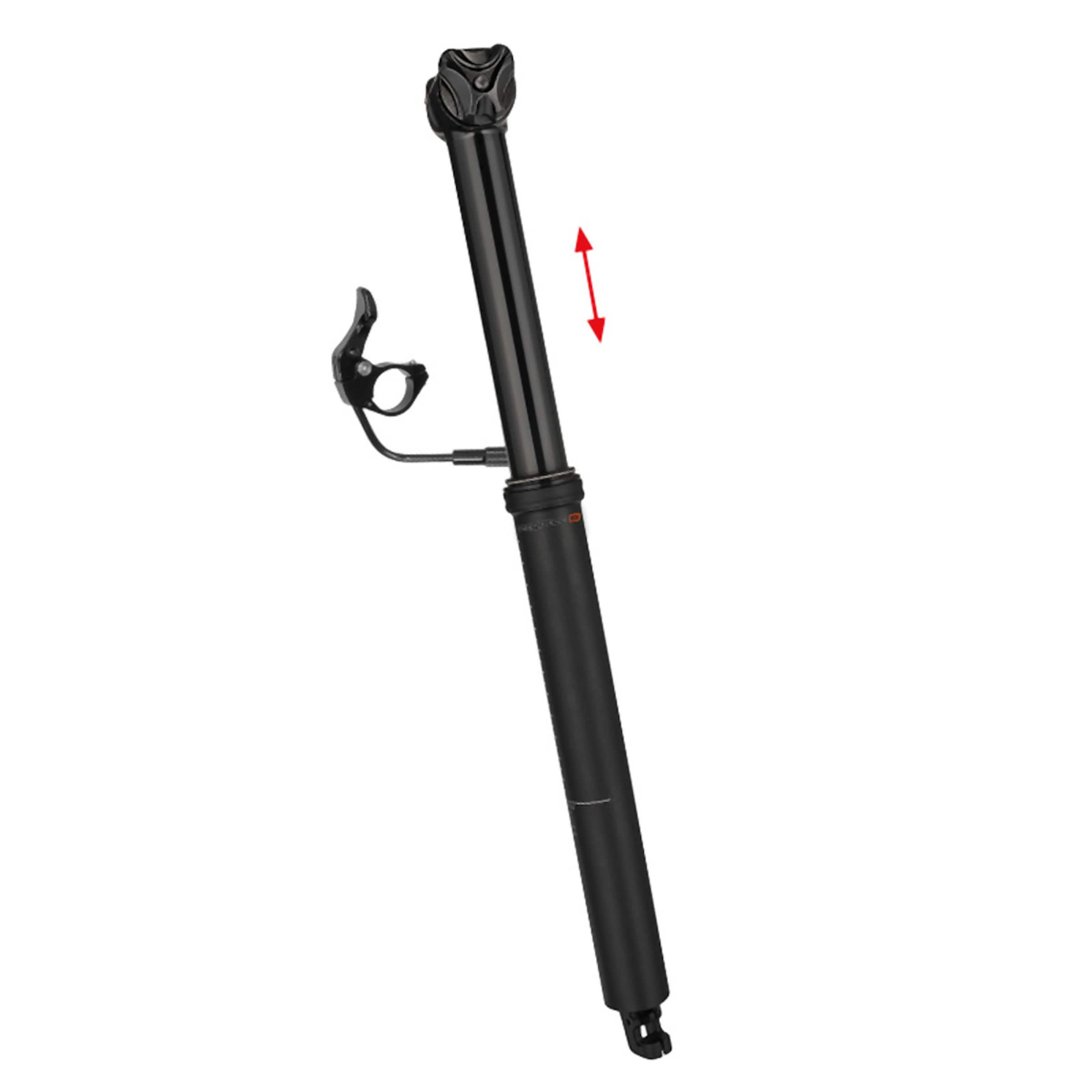

ergotec Viper Up and Down Dropper Post

The lowerable Viper Up and Down seat post from ergotec offers high comfort and quick adjustment options for ambitious mountain bikers.
It was developed for cross country, trail and enduro riders and enables precise height adjustment of up to 150 mm. This allows you to quickly adapt your saddle position to different terrain and riding situations.

Made from robust AL6066-T6 aluminium, the dropper post combines comparatively low weight with outstanding stability and high durability. The internal cable routing ensures a tidy appearance and reliably protects the cable from external influences. The saddle is designed to be easy to fit, so that installation is quick and uncomplicated.

The ergotec Viper Up and Down dropper post is therefore a reliable solution for anyone who values flexible saddle height adjustment, high-quality materials and comfortable handling on the trail.

Details:
• Comfortable and flexibly adjustable seat post for demanding mountain bike use
• Height adjustment of 150 mm for quick adaptation to terrain and riding situation
• Made from robust and lightweight AL6066-T6 aluminium
• Designed to cope with heavy loads (ergotec Safety Level 6*)
• Internal cable routing for a clean look
• Elegant finish, suitable for almost every MTB

Technical details:
• Intended use: MTB, E-MTB
• Material: aluminium 6061 T6
• Compatible seat stays: round (Ø 7 mm)
• Height adjustment: 150 mm
• Offset/setback: 0 mm
• Length: approx. 444 mm
• Minimum stack height (dropped): approx. 45 mm
• Minimum stack height (extended): approx. 195 mm
• Minimum insertion depth: approx. 100 mm
• Maximum insertion depth: approx. 230 mm

Note:
In addition to the length of the seat post, there is 22.5 mm for the release mechanism at the lower end of the post. Also make sure that there is enough space for a kink-free cable routing.

Clearance:
• ergotec Safety Level: 6*
• Max. Rider’s weight (incl. backpack): MTB (up to a jump height of max. 60 cm, also with electric drive) 120 kg

Available with seat post diameter:
• 30.9 mm (weight: approx. 685 g)
• 31.6 mm (weight: approx. 695 g)
Please indicate your choice.

In the box:
• 1 ergotec Viper Up and Down seat post


* Note:
The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes.


Fabricant: Wilhelm Humpert GmbH & Co. KG, Erlenstrasse 25, 58739 Wickede/Ruhr, Germany, www.ergotec.de
